HIGH RESOLUTION INKJET PRINTERS

UBS LCX 36e

Optimize your high-resolution coding with the UBS LCX 36e. This cost efficient and flexible printer provides an excellent production solution. Low maintenance and low ink consumption combine to deliver a low Total Cost of Ownership (TCO), without compromising the features needed to meet your production requirements.

PRODUCT FEATURES

Performance

  • High Resolution
    36mm piezo printhead with up to 360DPI horizontal resolution
  • Coding Speed
    60 m/min maximum speed and up to 10 prints/sec
  • Prints on Any Porous Surface
    Uses mineral-oil-free ink to print on any porous surface. Can also print on non-porous surfaces with low migration UV ink and UVLED curing system
  • GS1 Standards
    Prints any type of 1D and 2D code according to GS1 International Standards



Integration and set up

  • Ethernet Connection
    The most robust connection for industrial environments
  • Message Design Software
    UBS Designer lit, UBS Designer Plus, NiceLabel, Codesoft, Windows Driver
  • Data Types
    Text, variables, formulas, logos, images, dates, etc.

Ease of use

  • Integrated 7” HMI
    Full colour touchscreen delivering all necessary information
  • Bottle Detection System
    Protects against using incorrect or expired ink
  • Plug and Print
    Available for printing as soon as the printer is turned on. No daily maintenance required

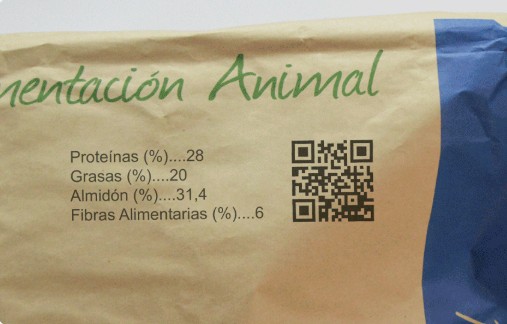

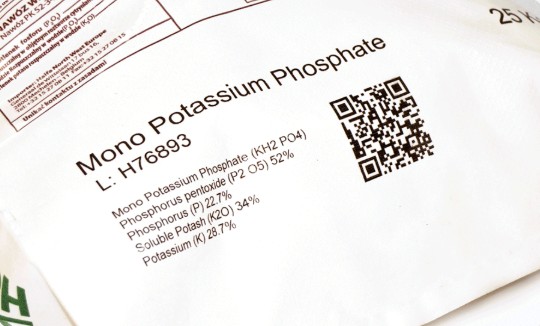

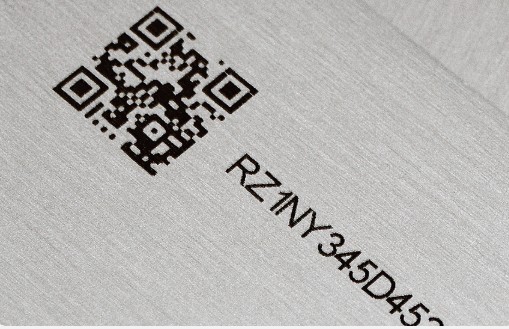

Print Sample

High Resolution Comparison Features
PERFORMANCE
Resolution
180dpi (vertical) / 180dpi to 360dpi (horizontal)
Printing Speed
Up to 60 m/min (197 ft/min)
Colours per Head
Printing Height
Up to 36mm (1.4”)
Message Length
Máx. 3m
Printable Substrates
Printing Distance
5mm
Orientation
Side, top or tilt from 0º to 90º (Flex Integration System)
Barcodes
GS1 (GTIN13, GTIN14, GS1-128, GS1 Datamatrix, QR Code, etc.)
USER INTERFACE
Controller
Message Editor
Variable Data Fields
Image Formats
GENERAL FEATURES
Display Features
7” color touchscreen
Ink Range
Oil-based inks UV, Cured Inks (Optional)
CONNECTIONS/INTERFACING
Input/Output
Encoder, beacon, and Aplink communication
RS232
No
Ethernet
Yes
USB
Yes
ELECTRONICS
Power Supply
Power Supply
ENVIRONMENT
Temperature
Humidity
