Linx UVG5

The Linx UVG5 UV laser coder eliminates the need for consumables, reducing cost of ownership and delivering uninterrupted operation.

Offering permanent marking onto a range of materials, including delicate mono-recyclable films and difficult to mark rigid plastics, the Linx UVG5 represents an excellent solution for challenging laser printing needs.

PRODUCT FEATURES

Performance

Higher production throughput with marking up to 2000 characters/second, for increased product marking in a shorter time period and line utilisation cost savings
Minimal thermal stress on substrates compared to CO2 and Fibre marking; Linx UV lasers reduce the risk of damage to sensitive materials such as plastics and films
Smoother code edges on substrates with higher contrast means highly visible and readable codes, to support traceability requirements

Integration and set up

Mark multi-sized products on the same line with built-in integrated Focus Shift; no hassle of moving the laser or making mechanical adjustments on the production line
Integrates into your existing line and can be fitted in difficult or space restricted areas due to the flexibility of the laser extension and turning units

Ease of use

Reduced mistakes through the user-friendly LinxVision UI, allowing users to interact with the laser easily
Eliminate costly product waste and ensure products are marked in the right place with the built-in Pilot Laser
Operator accuracy and simplified marking distance setup with the built-in Focus Finder

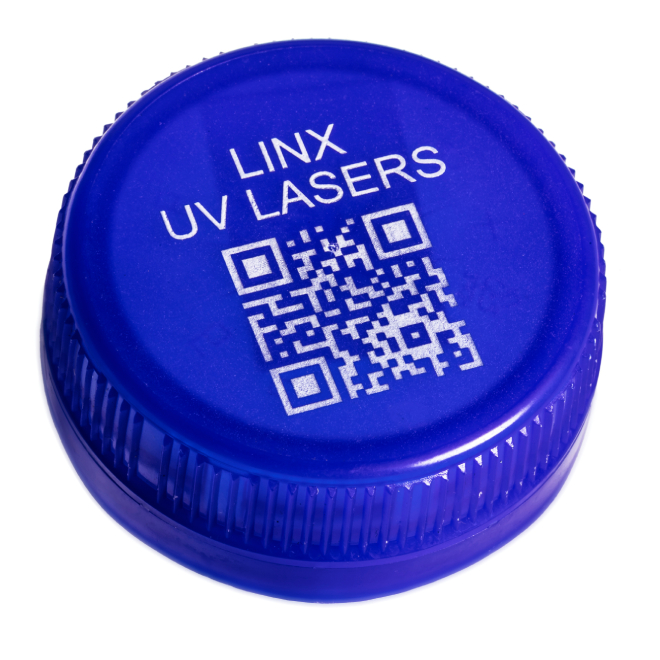

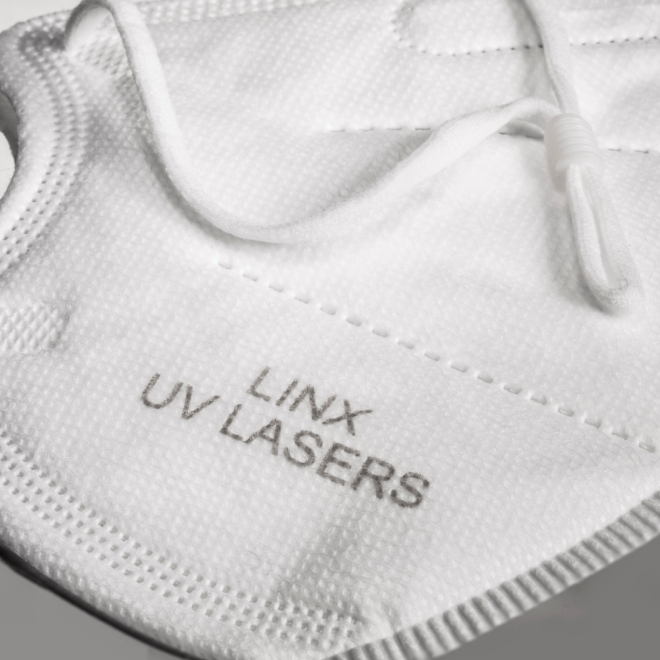

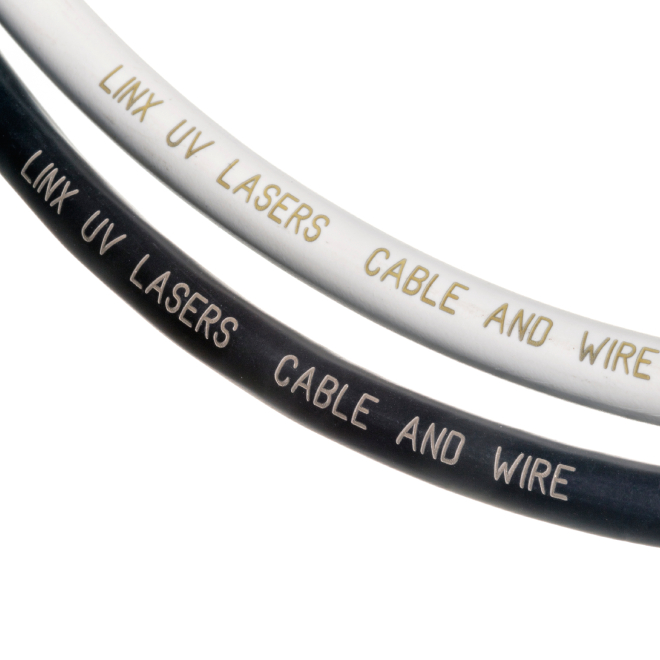

Print samples

SPECIFICATION

LASER FEATURES

Laser Type

UV Laser Coder

Maximum Output

Laser Wave Length

355nm

Laser Warranty

TBD

Laser Tube Life

TBD

PERFORMANCE

Line Speed

Up to 600m/min

Marking Speed

Up to 2000 characters/sec

Marking Field Size (mm)

Up to 259 x 393

Mark Distance

From 236mm - 650mm

CODING AND PROGRAMMING

Options

Options Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D codes including GS1 and DotCode

Character Type

"Vector fonts (OTF, TTF, PFA, PFB and SVG)"

Bar Codes

BC128, BC25, BC25I, BC39, BC39E, BC93, EAN 128, EAN 8, EAN 13, GSI-128, PZN, IMB, POSTNET, RSS14TR, RSS14ST, RSS14STO, RSSEXP, RSSLIM, RSSLIMGP, SCC14, UPC_A, UPC_E

Data Matrix 2D Codes

ECC000, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN 2D codes: Aztec, DotCode, QR, GS1 QR, microQR, PDF417

CONNECTIONS/INTERFACING

Interface Ports

1 detector, 1 encoder, 1 beacon, 1 fume extraction, 2 safety incl single/dual interlock, 1 Ethernet RJ45, 1 LinxVision Touch Screen, Optional Wi-Fi Access Box AB210 (Wi-Fi Connectivity)

RS232

N/A

Ethernet

Yes

PHYSICAL/ENVIRONMENTAL CHARACTERISTICS

Material

Stainless steel covers, anodised aluminum chassis

Protection Class

IP54 or IP65 (Optional)

Conduit Length

3m or 5m (optional)

Humidity Range

Max 90%
